The potential energy of the substrate is more than the product. So it is an exothermic reaction. 'A' represents the activation energy in the presence of enzyme while 'B' in the absence of enzyme i.e., enzyme lowers down the activation energy.

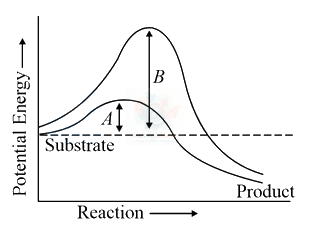

Which of the following describes the given graph NEET 2016 Botany, Biomolecules (B) — question figure
NEET UG 2016 — Botany Biomolecules
2016mcqeasy
Which of the following describes the given graph
Official previous-year question
Held on 30 Apr 2016 · Verified 9 Jul 2026.
Options
- A
Endothermic reaction with energy A in presence of enzyme and B in absence of enzyme
- B
Exothermic reaction with energy A in presence of enzyme and B in the absence of enzyme
- C
Endothermic reaction with energy A in absence of enzyme and B in presence of enzyme
- D
Exothermic reaction with energy A in absence of enzyme and B in presence of enzyme
